SW-EF
Nut / Bolt feeder
Step feeder
Standalone machine
Fully compatible with other control systems
Silent
Module built up
Integrated 20 liter buffer unit
Alarm function
Control system
Reliable
High quality
Touch display
Easy to install
Energy efficient
| Power Supply (V) | 230V / 400V 50Hz |
| Air Supply | 0,6-0,8 Mpa |
| Control System | Siemens, Mitsubishi, Beckhoff, Allen Bradley |
| Communication | Profinet or digital I/O (Harting HB16) |
| Dimensions (LxWxH) | 800x570x1300 |
| Weight | 270kg |
| Noice | 70-78dB, (72dB, M8 din 928 square nut) |
| Capacity | 30-60 nuts/min (35 nuts/min M8 din 928) |
| Energy Consumption | 0,3kW |
| Electrical current | Fuse C10A |

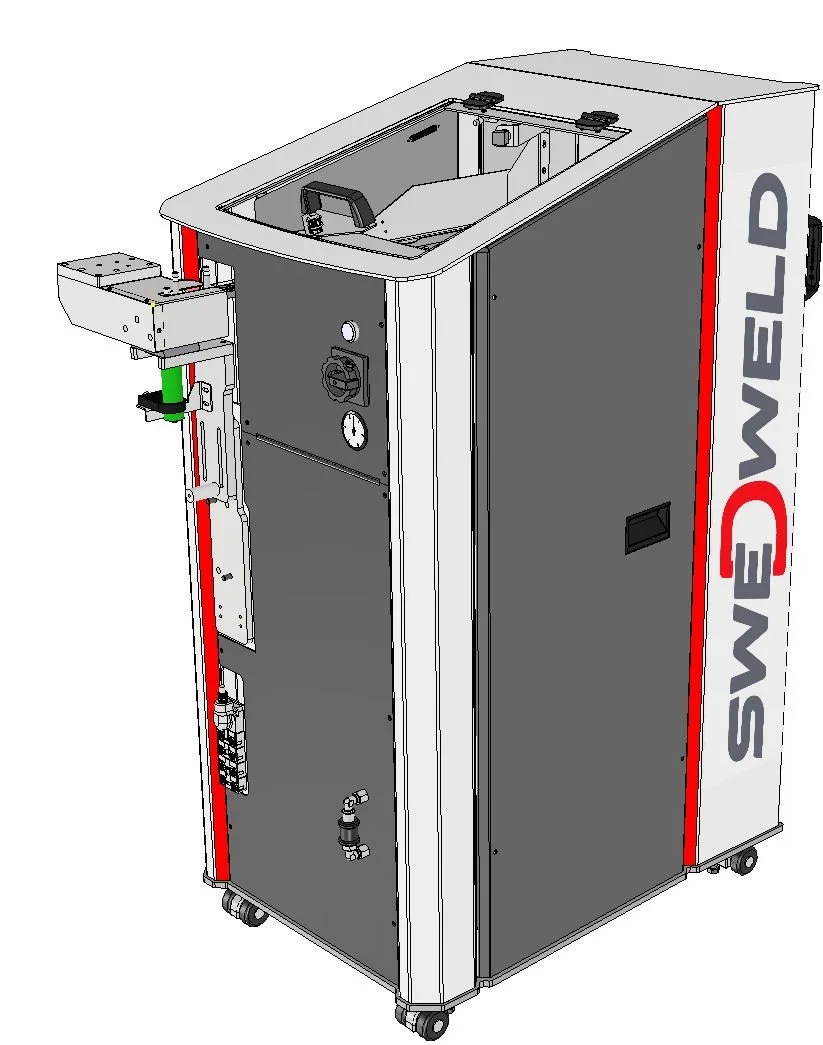

SW-EF Nut/Bolt Feeder
Examples of bolts feeded

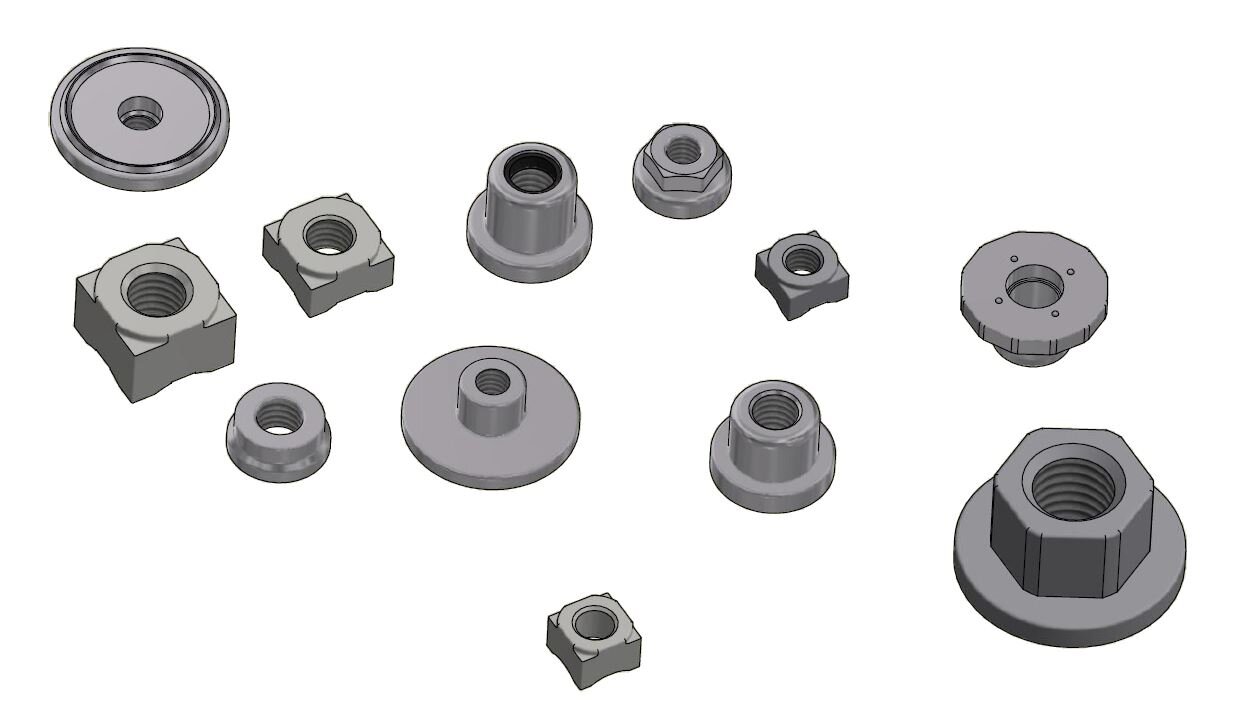

Exampels of nuts feeded
SW-BFM step feeder
High feeding capacity
Highest reliability in uptime, up to 99,998%
High flexibility in system configuration “ module” and in compatibility to other systems
Reuses and adapt to new requirements
Quality, "state of the art"
Low maintenance costs
Low noise levels good work environment
| Power Supply (V) | 230V / 50Hz |
| Air Supply | 0,6-0,8 Mpa |
| Control System | Siemens, Mitsubishi |
| Communication | Profinet or digital I/O (Harting HB16) |
| Dimensions (LxWxH) | 500x500x650 |
| Weight | 80 kg |
| Capacity | 30-60 screws/min |
| Energy Consumption | 0,15kW |
SW-BFM step feeder
